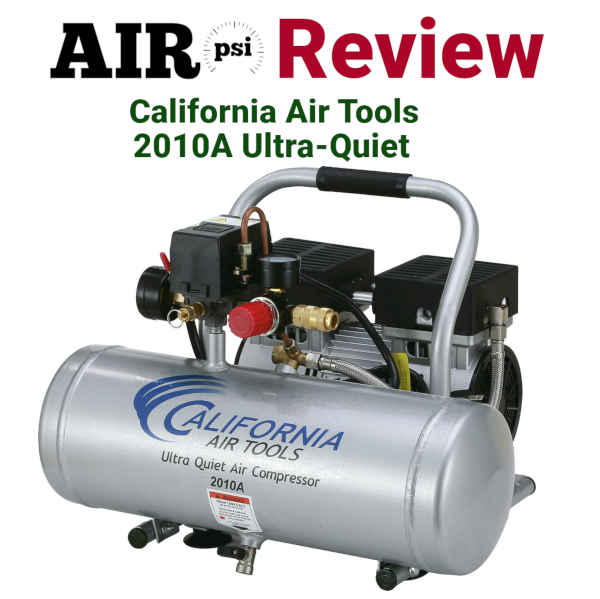

California Air Tools 2010A Review - Ultra Quiet Series
The California Air Tools 2010A Ultra Quiet Air Compressor is engineered to be one of the quietest 1 HP compressors that you can buy today.
With a two-gallon rust-free aluminum air tank, the CAT-2010A is lightweight (35 lbs.) and easy to transport to the job-site. A 60 dB noise level is extremely quiet for an air compressor and your ears will definitely thank you.
CAT-2010A Quick Specifications:
California Air Tools 2010A - ASIN B00TDNKBMC
California Air Tools is a major manufacturer of quiet air compressors. The 1 HP, 10 Gallon, 2.2 CFM @ 90 PSI CAT-2010 models are from the contractor grade California Air Tools Ultra Quiet Series of air compressors.
California Air Tools 2010A Review
California Air Tools 2010A Ultra Quiet Video
This is a well designed unit, all controls are easily accessible. The quick connect air connection is the easy one-handed push in type with no need to pull back on the collar.
New SP Series Air Pump
California Air Tools 2010A air compressor uses the easily repairable new SP series motor/pump. The 1 horsepower Ultra-Quiet Series SP-9413 pump motor, features thermal overload protection to help prevent damage from overheating. Increased duty cycle and improved heat dissipation allows for longer continuous compressor run times before rest. The ultra-quiet 1680 RPM, four pole, brushless induction motor is UL listed and features thermal overload protection. If the motor’s temperature exceeds 275 degrees Fahrenheit, the thermal overload opens the circuit to help prevent accidental damage due to overheating.
The cast aluminum dual cylinder pump features low friction Teflon piston rings to ensure quieter operation. A new, improved valve plate design equipped with Swedish reed valves improves the compressor’s air flow. The long-life, high performance dual piston pump is oil-free, with low maintenance requirements and is rated 3000 hours before repair. The SP-9413 is rated at 1.0 HP running and 2.0 HP peak.
California Air Tools 1 HP SP-9413 Compressor Pump
The oil-free design allows easy cold weather starting and operation on uneven surfaces since there is no oil in the pump. However, the owner's manual states, "For proper operation, the air compressor must be placed on a flat surface with an incline no greater than 15 degrees", so you wouldn't want to get too extreme with the compressor angle.
CAT-2010A Compressor Pictures
California Air Tools 2010A - Front View
California Air Tools 2010A - Rear View
CAT-2010A - Left Side View
CAT-2010A - Right Side View
CAT-2010A - Top View
CAT-2010A - Angled View
The 2.2 CFM @ 90 PSI rating of the California Air Tools 2010A easily powers finishing and brad nail guns, however larger pneumatic tools such as impact wrenches, grinders, etc. will likely need a larger compressor for optimal operation. You can check larger quiet air compressors here. Quietest Air Compressor for Garage or Shop.
The duty cycle of the CAT-2010A is 70/30. Like most inexpensive air compressors this unit is not designed to be run continuously. The manufacturer recommends a maximum continuous run-time of 30 to 60 minutes. (Depending PSI & CFM).
A lightweight and rust-resistant 2-gallon aluminum air tank fills from empty to 120 PSI in 50 seconds and can quickly recover from 90 PSI to 120 PSI in about 14 seconds. This unit requires only 8.5 Amps to operate, so you can plug it in anywhere there is an available outlet.
This is a great, super quiet compressor for powering finish air nail guns. You can run it in occupied indoor areas without disturbing the occupants.
California Air Tools 2010A - UPC 743369720140
CAT-2010A Resources.
CAT-2010A Ultra Quiet Air Compressor Owners-Manual - PDF
California Air Tools SP-9413 Motor Manual
Manufacturer's Product Page - CAT-2010A
California Air Tools Customer Service Department: 1-866-409-4581
California Air Tools 2010A Specifications
Our CAT-2010A Ratings
Quietness
California Air Tools specializes in producing quiet air compressors. 60 dB for a 1 HP compressor is very good.
Quality
California Air Tools is a leader in the quiet air compressor industry, and the quality built into the 2010A is no exception.
Cost
The CAT-2010A typically costs $190 - $220, which is competitive for similar 1 HP quiet air compressor models.
Overall Rating : 4.5
If you need a super quiet and portable small compressor, this model would be an excellent buy. With a light-weight aluminum 2- gallon tank and oil-free one horsepower pump it's a popular choice for many. We gave the California Air Tools 2010A air compressor an overall rating of 4.5 stars.
Pros
Cons
"Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!"
California Air Tools
The Bottom Line
If you are looking for an ultra-quiet air compressor for small jobs, then check out the CAT-2010A. This is an excellent small air compressor with a noise level of only 60 dB. With over 880 Amazon user ratings when this review was written, the 2010A averaged an excellent 4.5 star average rating. If you are interested in a larger 8-gallon steel tank version with the same 1 HP ultra-quiet compressor pump. you might want to check out our California Air Tools 8010 review.
